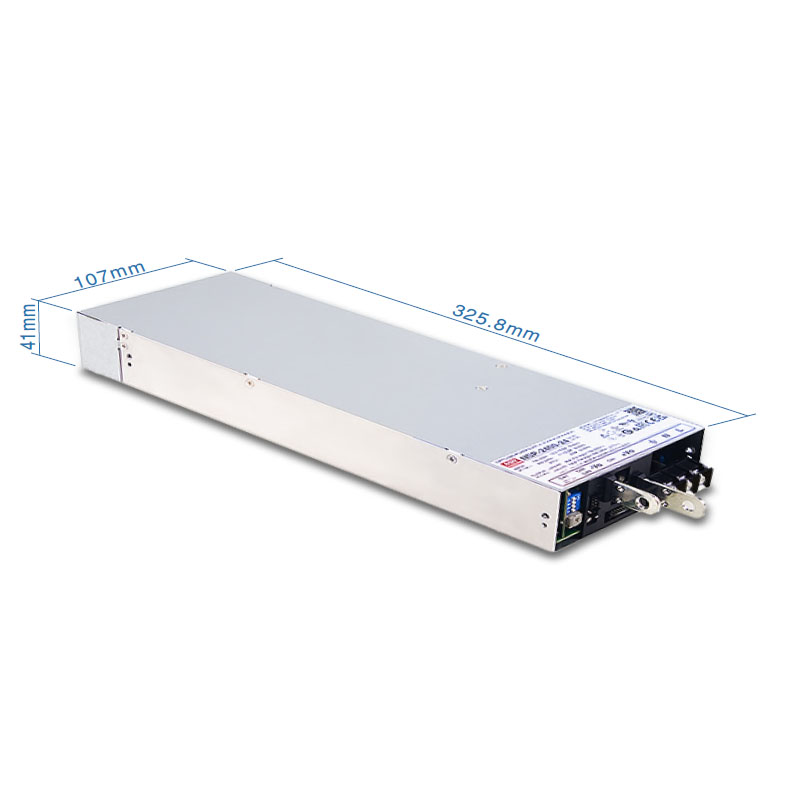

NSP-2400 Series
2400W high-reliability, multi-industries, universal enclosed type power supply
Description
MEAN WELL NSP-2400 is a 2400W 1U multi-industry enclosed AC/DC power supply featuring 85-305Vac wide input and up to 93% efficiency. It offers 0-120% programmable voltage (PV), 0-100% programmable current (PC), 200% peak power capability, and current sharing up to 9600W (3+1). Built-in CANBus or MODBus protocols ensure smart control. Certified for Medical (60601-1 2xMOPP, <500uA leakage), Industrial (61010-1/62477-1/SEMI F47), and ITE (62368-1), it supports -40~+85°C operation with 5-year warranty.
Features
- 85~305Vac input with PFC(277Vac available)
- Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/2-16/61010-1/-2-201, Energy converter 62477-1), SEMI F47 at 200Vac
- 200% peak power capability
- High efficiency up to 93%
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 9600W(3+1) for parallel use
- Buit in ORing MOS By request, Order NO. : NSP-2400-xxOR/MODOR
- CANBus(Built in) or MODBus protocol (By request)
- -40~85°C wide range operation temperature(> +60°C derating)
- Extremely low leakage current <500uA, 2 x MOPP, suitable for BF medical applications
- Built-in constant current limiting circuit
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- Auxiliary 5Vdc and 12Vdc
- Over voltage category III (OVC III)
- Operating altitude up to 5o0o meters
- Built-in intelligent fan speed control, low noise <46dB
- Conformal coating
- 5 years warranty
Specification
| SPECIFICATION | NSP-2400-12x | NSP-2400-15x | NSP-2400-24x | NSP-2400-27x | NSP-2400-36x | NSP-2400-48x | NSP-2400-60x | |
|---|---|---|---|---|---|---|---|---|
| OUTPUT | ||||||||
| DC VOLTAGE | 12V | 15V | 24V | 27V | 36V | 48V | 60V | |
| RATED CURRENT | 183.3A | 146.7A | 100.0A | 88.8A | 66.6A | 50.0A | 40.0A | |
| CURRENT RANGE | 0 ~ 183.3A | 0 ~ 146.7A | 0 ~ 100.0A | 0 ~ 88.8A | 0 ~ 66.6A | 0 ~ 50.0A | 0 ~ 40.0A | |
| RATED POWER | 2200W | 2200W | 2400W | 2397W | 2397W | 2400W | 2400W | |
| VOLTAGE TOLERANCE | ±1.0% (see official specification for model-specific exceptions) | |||||||
| INPUT | ||||||||
| VOLTAGE RANGE | 85 ~ 305Vac / 120 ~ 431Vdc | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| PROTECTION | ||||||||
| OVERLOAD | Constant current limiting or shut down o/p voltage; recovers automatically or by AC re-power according to operating condition. | |||||||
| OVER TEMPERATURE | Shut down o/p voltage; recovers automatically after temperature goes down. | |||||||
| ENVIRONMENT | ||||||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to “Derating Curve”) | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||
| SAFETY & EMC | |||
|---|---|---|---|
| SAFETY STANDARDS | CB: IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC61010-1/-2-201, IEC60601-1; IEC62477-1 DEKRA: BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN61010-1/-2-201, BS EN/EN60601-1(3.2 Version); BS EN/EN62477-1 UL: UL62368-1, ANSI/AAMI ES60601-1(3.2 Version), UL61010-1/-2-201 CCC: GB4943.1 BSMI: CNS15598-1 EAC: TP TC 004 SEMI F47 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P: 4.2KVac I/P-FG: 2.1KVac O/P-FG: 1.5KVac | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃ / 70% RH | ||
| EMC EMISSION | Parameter | Standard | Test Level / Note |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | |
| Radiated | BS EN/EN55032 (CISPR32) | Class B | |
| Harmonic Current | BS EN/EN61000-3-2 | Class A | |
| Voltage Flicker | BS EN/EN61000-3-3 | ----- | |
| EMC IMMUNITY | Parameter | Standard | Test Level / Note |
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air; Level 4, 8KV contact | |
| Radiated | BS EN/EN61000-4-3 | Level 3, 10V/m | |
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, 2KV | |
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Line-Line 4KV/Line-Earth | |
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V | |
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m | |
| OTHERS | |||
| MTBF | 566.1K hrs min. Telcordia SR-332 (Bellcore); 47.3K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION (L*W*H) | 325.8*107*41mm | ||
| PACKING | 2.32Kg;4pcs/10.3Kg/1.09CUFT | ||
Model
| Model No. | I/P Vol. | O/P Vol. | O/P Current | O/P Watts (max.) |
|---|---|---|---|---|
| NSP-2400-12x | 85 ~ 305VAC / 120 ~ 431VDC | 12VDC | 0 ~ 183.3A | 2200W |
| NSP-2400-15x | 85 ~ 305VAC / 120 ~ 431VDC | 15VDC | 0 ~ 146.7A | 2200W |
| NSP-2400-24x | 85 ~ 305VAC / 120 ~ 431VDC | 24VDC | 0 ~ 100.0A | 2400W |
| NSP-2400-27x | 85 ~ 305VAC / 120 ~ 431VDC | 27VDC | 0 ~ 88.8A | 2397W |
| NSP-2400-36x | 85 ~ 305VAC / 120 ~ 431VDC | 36VDC | 0 ~ 66.6A | 2397W |
| NSP-2400-48x | 85 ~ 305VAC / 120 ~ 431VDC | 48VDC | 0 ~ 50.0A | 2400W |
| NSP-2400-60x | 85 ~ 305VAC / 120 ~ 431VDC | 60VDC | 0 ~ 40.0A | 2400W |
Communication Protocol Options:
- x = Blank ; CANBus
- x = MOD ; MODBus
Notices：
- All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
- Ripple & noise are measured at 20MHz bandwidth using a 12-inch twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- Tolerance includes set up tolerance, line regulation and load regulation.
- Derating may be required under low input voltages. Please refer to the static characteristic section for details.
- If the PV signal is used to adjust Vo, output ripple and noise may exceed the specified limits under certain operating conditions.
- Fan noise measurement is performed in accordance with ISO 7779.
- The power supply is considered a component installed into final equipment. EMC tests were executed by mounting the unit on a 360mm*360mm metal plate with 1mm thickness. The final equipment must be re-confirmed to meet EMC directives.
- The ambient temperature derating is 3.5℃/1000m with fanless models and 5℃/1000m with fan models above 2000m (6500ft).
※ Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
Mechanical Drawing (Unit: mm)
