60W Interchangeable Type USB PD3.0 : FHMC060-PD5-I

FHMC060-PD5-I - 60W interchangeable type USB PD3.0 with 5V to 20V output voltage, support QC4.0


Interchangeable USB PD

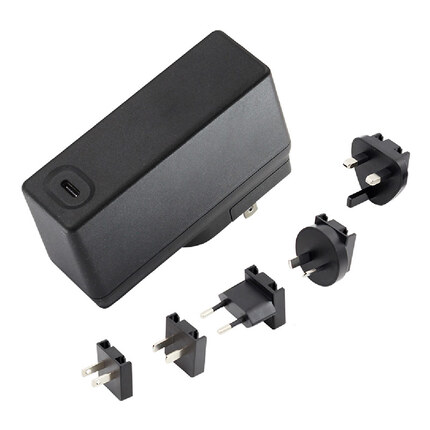

FHMC060 is IEC/EN/UL62368-1 certified USB PD3.0. It can be operated up to 5000M altitude. The s main body can be equipped with USA、Japan、China、EURO、UK and AUS AC plugs which can be sold and use worldwide. Support online programming and QC4.0 fast charge agreement.
  • Meet ITE safety
  • Touch current ≦ 100μA
  • Energy efficiency level VI
  • ≦ 0.15W standby power
  • 5-20V outputs, up to 60W
  • Up to 5000M altitude
  • Supports online programming
  • Meet USB PD3.0 and QC4.0 fast charge agreement
Input Voltage Range 90~264VAC
Frequency Range 47~63 Hz
Input Current 1.3A at 90VAC
Inrush Current (cold start) 100A max. at 240VAC
Touch Leakage Current (max.) ≦100μA at 240VAC
Ripple & Noise (max.) 150mVpk-pk
Line Regulation ± 1%
Load Regulation ± 5%
Operating Temperature 0℃~ 40℃
Storage Temperature -40℃~ 80℃
Operating Humidity 10% to 95% RH
Storage Humidity 5% to 95% RH
Safety Standard IEC/UL/EN 62368-1,CE
EMC Standard N55032/CISPR32, FCC Part 15) class B,EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55035/CIRPR35
Overload Protection (auto recovery) 105~140% rated output power
Over Voltage Protection (input to reset) 110~130% rated output power
Short Circuit Protection (hiccup mode) trip and restart
MTBF 100,000hrs MIL-HKBK-217 at 25℃
Dielectric Withstand Voltage 5656VDC input to output
Insulation Resistance 10M Ohms, 500VDC input to output
Dimensions 97.0 (L)x63.5(W)x33.5(H)mm
Weight 180g

Model No. I/P Vol. O/P Vol. O/P Current O/P Watts (max.) DoE 6 Ecodesign
FHMC060-PD5-I 90~264VAC 5.00 VDC 0.01-3.00 15W VI 2019/1782
9.00 VDC 0.01-3.00 27W
12.0 VDC 0.01-3.00 36W
15.0 VDC 0.01-3.00 45W
20.0 VDC 0.01-3.00 60W
Mechanical Drawing (Unit: mm)
