24W Medical Power Supply-Fixed AC Plug Medical Adapter : FRM024
FRM024 - 12W to 24W with 3~27V anywhere output voltage medical power. Fixed AC pin plug in type.
Description

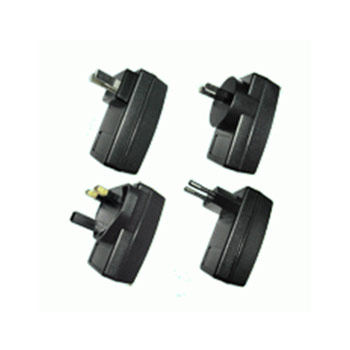

Medical Power Adapter (Wall Mount Adapter)
FRM024 Series is wall mount power supply (medical power adapter) with fixed AC wall plug which is designed specifically for healthcare facility medical power. 2xMOPP approved and suitable for BF application with appropriate system consideration. It is also approved according to EN/IEC60601-1 and EN/IEC60601-1-11 standard. It works for blood pressure meter and nebulizer. In the meantime, we also fulfill with latest EMC ed 4.0 and IP22 which also can be used in home healthcare environment.Features
- Single output 12~24W, anywhere o/p voltage 3~27 VDC
- Fixed AC wall plug
- 2 years warranty
Specification
Input Voltage | 90 ~ 264 VAC |
Input Current (rms) | 0.7A Max. |
Output Voltage | Anywhere output 3 ~ 27 VDC |
Efficiency | 75% min. at full load |
Voltage Regulation | ± 5% max |
Leakage current | max. 0.1mA |
Withstand Voltage | I/P - O/P : 5656 VDC |
Operating Temperature | -10 °C ~ +50 °C (derated linearly from 100% load @ 40 °C to 75% load @ 50 °C) |
Storage Temperature | -20°C ~ 85°C |
Operating Humidity | 20% to 90% RH |
Protections | OVP, OLP, Short Circuit Protection |
Safety Standard | UL/EN60601-1 + 60601-1-11, CE, CB |
EMI standard | CISPR-11 / EN55011 / FCC part18 class B |
Standard Output Connector | DC Barrel Jack |
Cable/length | UL2468 / 5Ft. |
Size | L82 x W43.5 x H35.7 mm |
Model
Model No. | I/P Vol. | O/P Vol. | O/P Current | O/P Watts (max.) |
FRM024-S03-x | 90~264VAC | 3.0 VDC | 4.00A | 12W |
FRM024-S03-x | 3.3 VDC | 3.64A | ||
FRM024-S03-x | 3.4 VDC | 3.53A | ||
FRM024-S03-x | 4.2 VDC | 2.86A | ||
FRM024-S03-x | 4.7 VDC | 2.55A | ||
FRM024-S05-x | 90~264VAC | 5.0 VDC | 3.00A | 15W |
FRM024-S05-x | 5.4 VDC | 2.78A | ||
FRM024-S07-x | 90~264VAC | 6.0 VDC | 2.50A | 15W |
FRM024-S07-x | 6.5 VDC | 2.31A | ||
FRM024-S07-x | 7.0 VDC | 2.14A | ||
FRM024-S07-x | 7.5 VDC | 2.00A | ||
FRM024-S09-x | 90~264VAC | 8.0 VDC | 2.50A | 20W |
FRM024-S09-x | 9.0 VDC | 2.22A | ||
FRM024-S09-x | 10.0 VDC | 2.00A | ||
FRM024-S12-x | 90~264VAC | 12.0 VDC | 2.00A | 24W |
FRM024-S15-x | 90~264VAC | 13.6 VDC | 1.76A | 24W |
FRM024-S15-x | 14.4 VDC | 1.67A | ||
FRM024-S15-x | 15.0 VDC | 1.60A | ||
FRM024-S18-x | 90~264VAC | 16.5 VDC | 1.45A | 24W |
FRM024-S18-x | 18.0 VDC | 1.33A | ||
FRM024-S18-x | 20.0 VDC | 1.20A | ||
FRM024-S24-x | 90~264VAC | 24.0 VDC | 1.00A | 24W |
FRM024-S24-x | 27.0 VDC | 0.89A |
Notices:
- FRM024-S03-x : output voltage from 3~5VDC is available
- FRM024-S05-x : output voltage from 5~6VDC is available
- FRM024-S07-x : output voltage from 6~8VDC is available
- FRM024-S09-x : output voltage from 8~11VDC is available
- FRM024-S12-x : output voltage from 11~13VDC is available
- FRM024-S15-x : output voltage from 13~16VDC is available
- FRM024-S18-x : output voltage from 16~21VDC is available
- FRM024-S24-x : output voltage from 21~27VDC is available
Ordering Information:
-
Note : Wall Mount AC plug Type,
x=A (Australian plug) ; x=U (US plug) ; x=E (Euro plug)
